Basic Plotting

Core plotting entry points and customisation options.

using Graphs, DAGMakie, CairoMakie

# Classic confounding triangle: Z → X → Y, Z → Y
g, labels = confounding_graph(["Z", "X", "Y"])

The `dagplot` Function

The main entry point is dagplot, which creates a new figure:

fig, ax, p = dagplot(g; kwargs...)

For plotting into an existing axis, use dagplot!:

p = dagplot!(ax, g; kwargs...)

Node Customisation

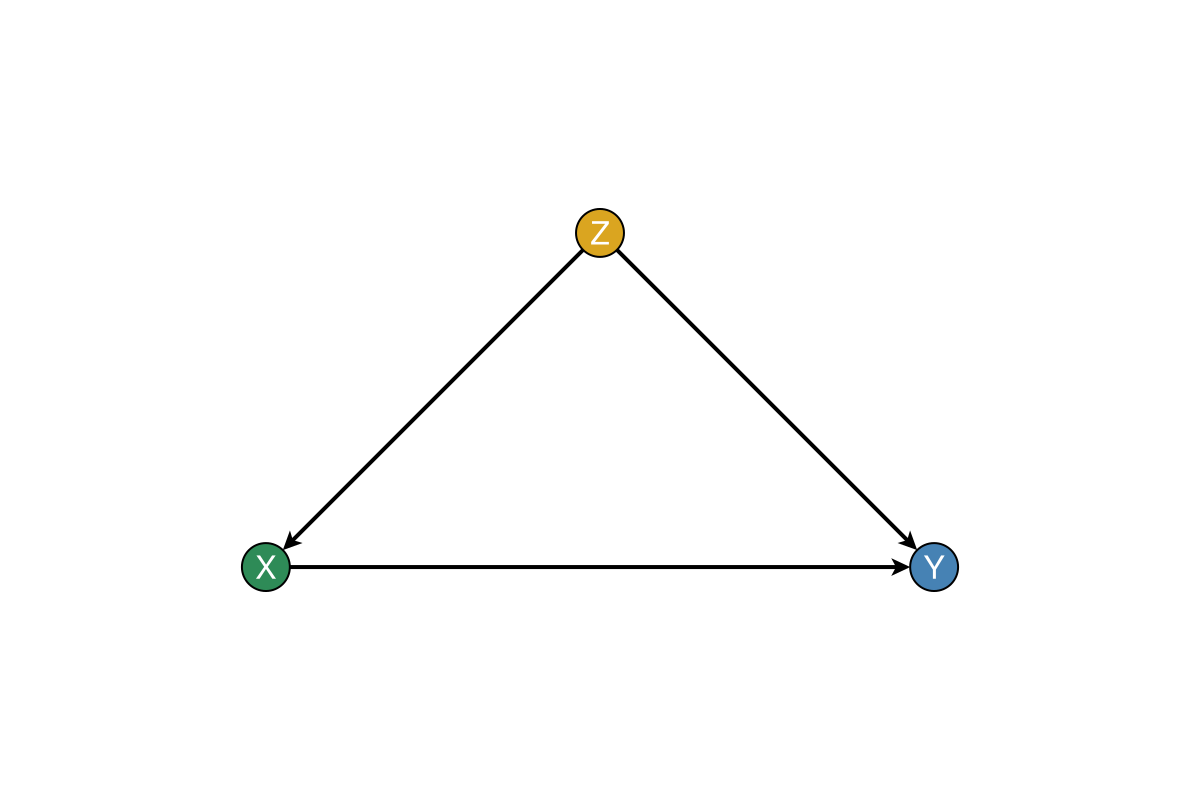

Size and Colour

Default plots use steel-blue fills with white in-node labels. When you choose light fills, set nlabels_color accordingly (and keep nodes large enough for the label):

fig, ax, p = dagplot(g,
    labels = labels,
    node_size = 34,
    node_color = [:goldenrod, :seagreen, :steelblue],
    nlabels_color = :white,
)
fig

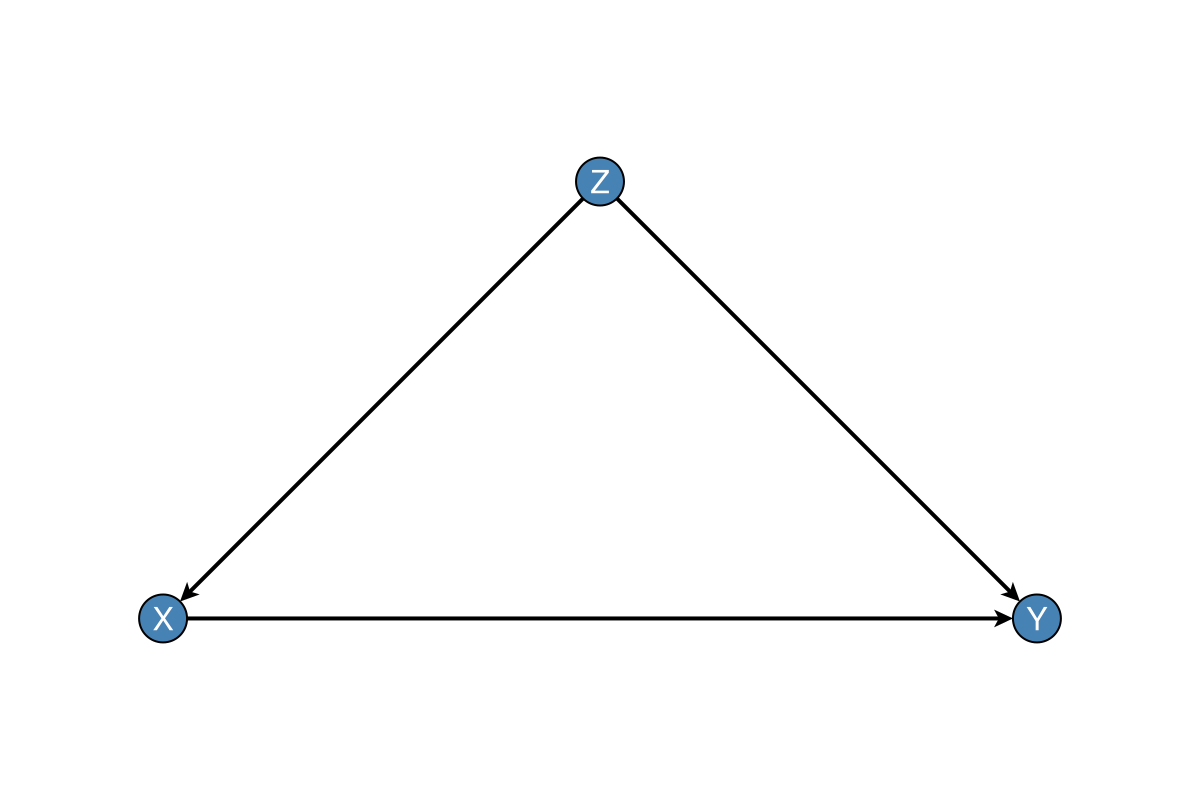

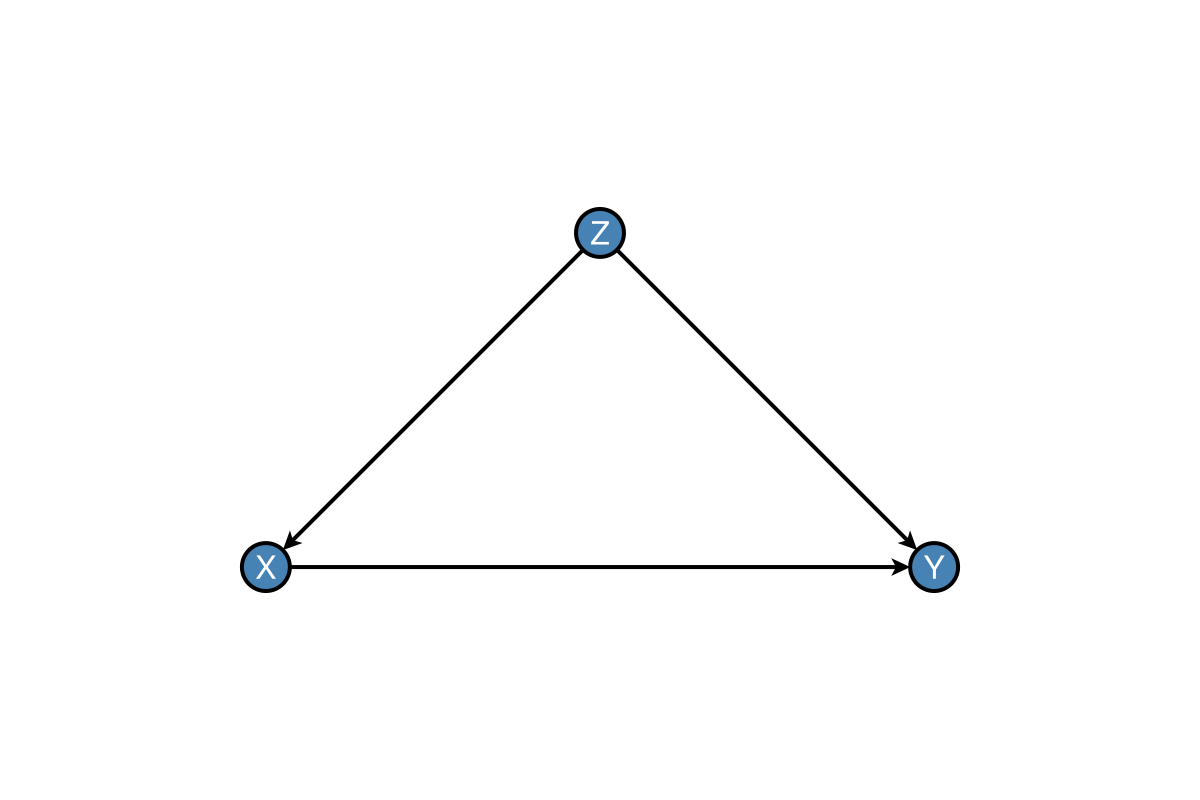

Outline Styling

fig, ax, p = dagplot(g,
    labels = labels,
    node_strokewidth = 2.0,
    node_strokecolor = :black,
)
fig

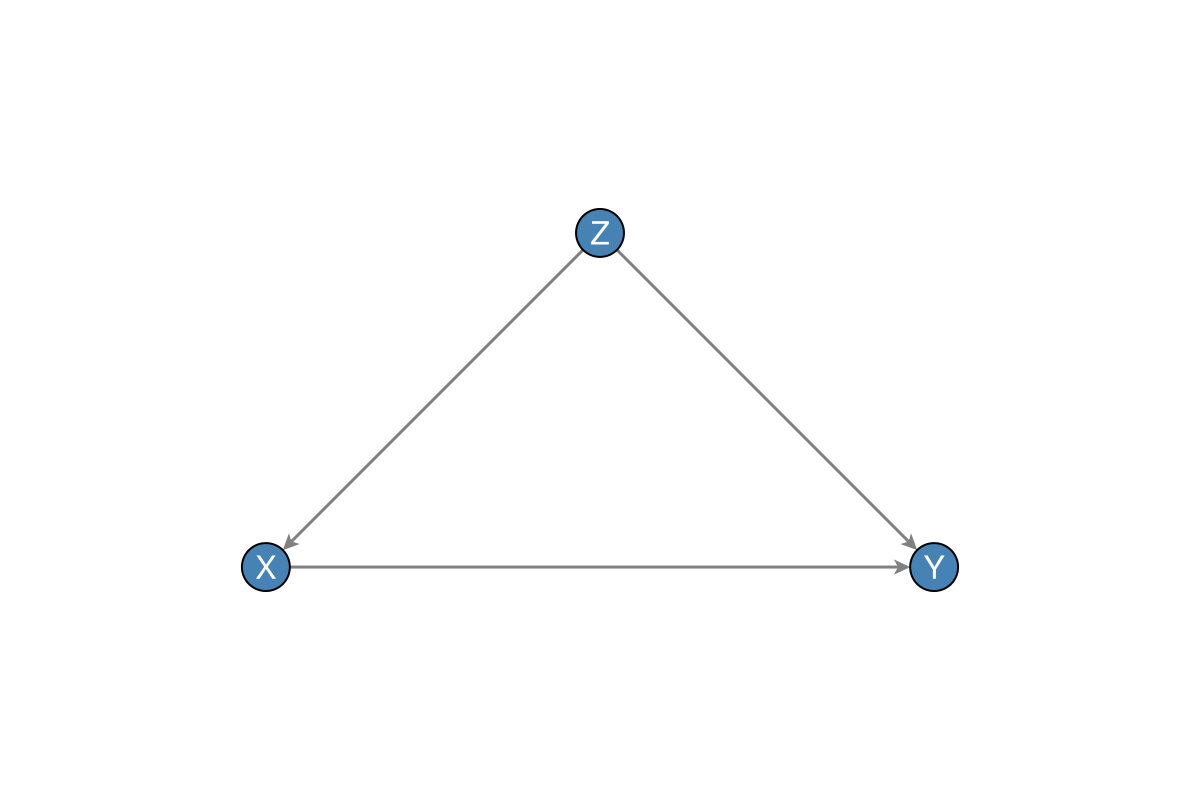

Edge Customisation

fig, ax, p = dagplot(g,
    labels = labels,
    edge_color = :gray,
    edge_width = 1.5,
    arrow_size = 12,
    arrow_shift = :end,
)
fig

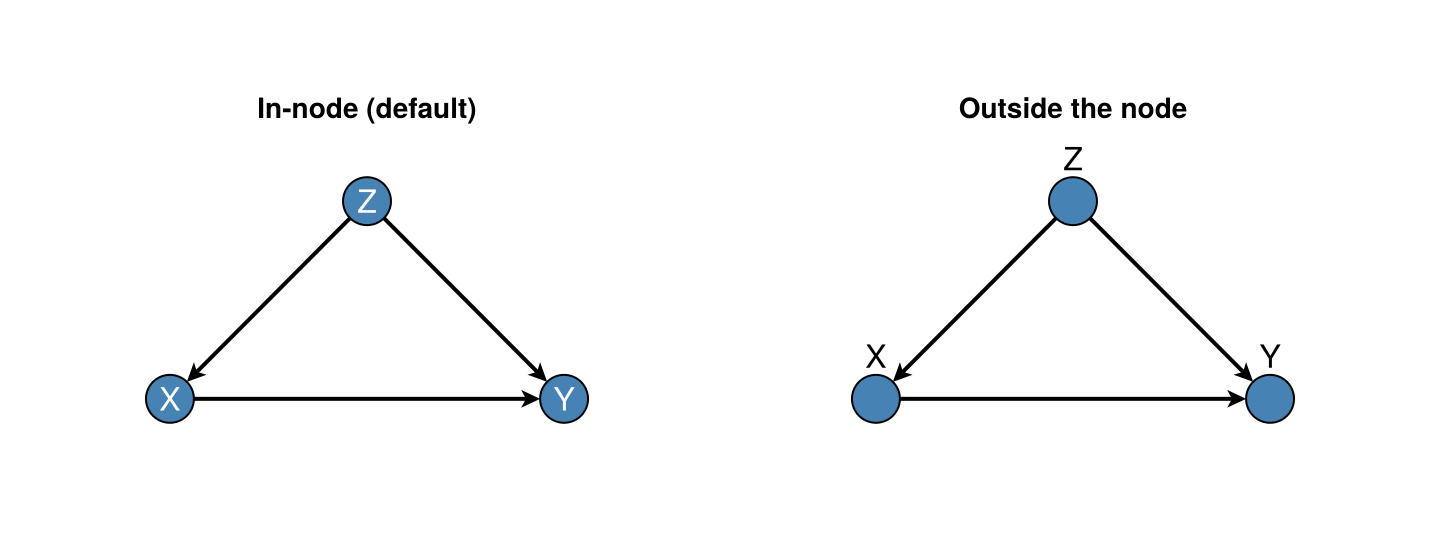

In-node labels (default) want a contrasting colour on the fill. External labels need a positive nlabels_distance and a non-centred nlabels_align: GraphMakie offsets along the align direction, so (:center, :center) leaves the pixel offset at zero and the text stays inside the marker. Prefer black text off the fill:

fig = Figure(size = (720, 280))
ax1 = Axis(fig[1, 1], title = "In-node (default)")
ax2 = Axis(fig[1, 2], title = "Outside the node")
dagplot!(ax1, g;
    labels = labels,
    nlabels_fontsize = 16,
    nlabels_color = :white,
    nlabels_distance = 0,
)
dagplot!(ax2, g;
    labels = labels,
    nlabels_color = :black,
    nlabels_distance = 12,
    # (:center, :bottom) anchors the bottom of the text, so labels sit above
    nlabels_align = (:center, :bottom),
)
fig

Label Alignment

nlabels_align is the Makie text-box anchor (passed through GraphMakie), not “put the label on this side of the node”. The named side is which edge of the label sits on the anchor point, so the node ends up on that side of the label:

`nlabels_align`	Anchor meaning	Label ends up…
`(:left, :center)`	left edge of text on point	right of the node
`(:right, :center)`	right edge of text on point	left of the node
`(:center, :bottom)`	bottom of text on point	above the node
`(:center, :top)`	top of text on point	below the node

With a positive nlabels_distance, GraphMakie also shifts the anchor along the same direction (so (:left, :center) both left-anchors and nudges east).

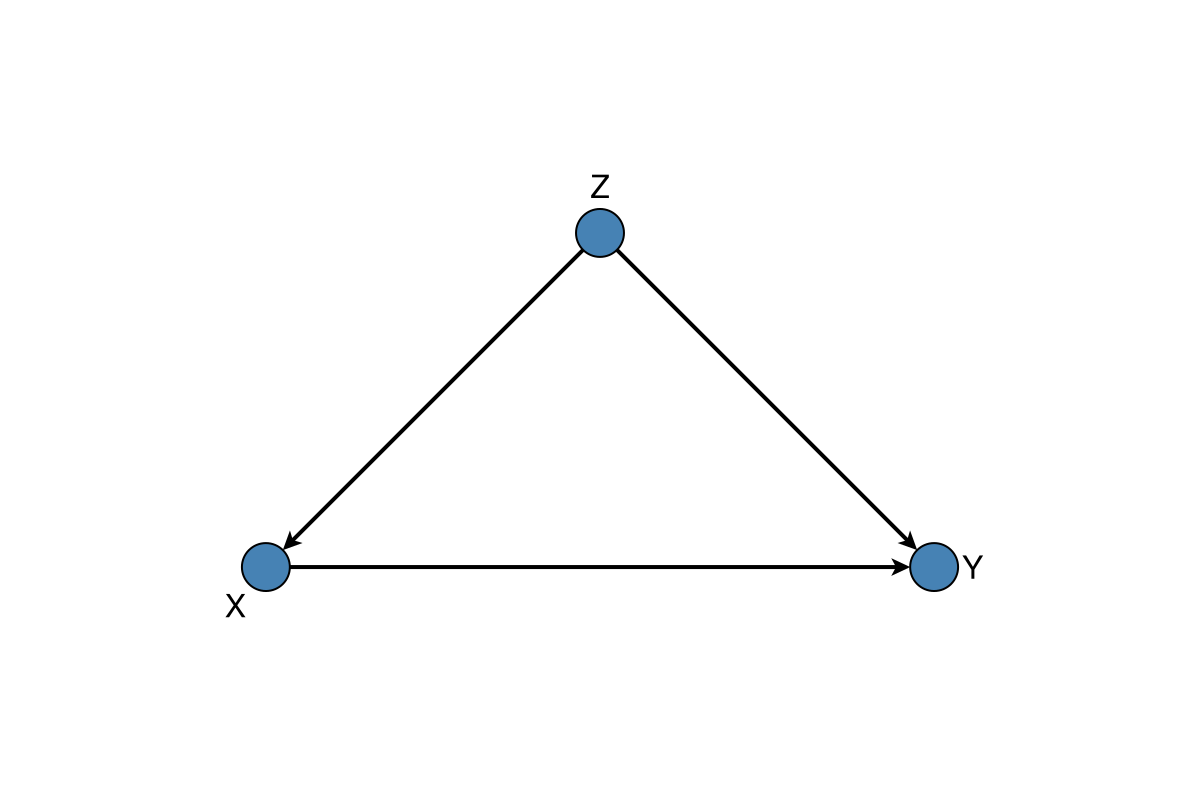

By default labels sit outside the node in the largest angular gap (label_position = :outer): compact markers (OUTER_LABEL_NODE_SIZE), dark text, and auto-aligned anchors. Pass label_position = :inner with fit_node_size_to_labels = true for in-node white labels (short names stay round; wider ones become ovals).

using Graphs, DAGMakie, CairoMakie

g2, labels2 = confounding_graph(["nutrition", "X", "Y"])
fig, ax, p = dagplot(g2; labels = labels2)
fig

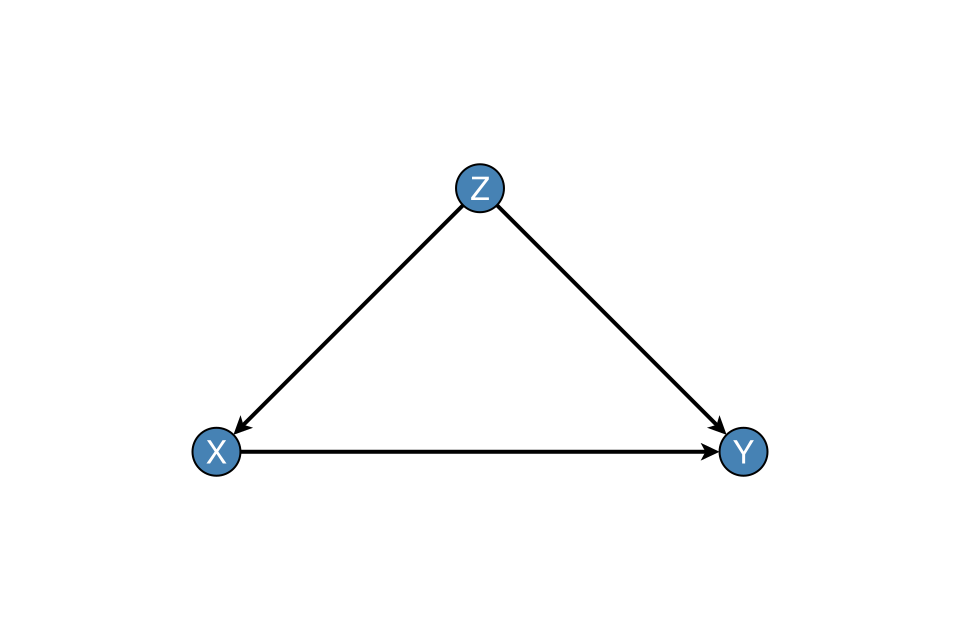

In-node labels (label_position = :inner) centre white text in the fill; enable fit_node_size_to_labels = true so marker size follows each label:

fig, ax, p = dagplot(g,
    labels = labels,
    label_position = :inner,
    fit_node_size_to_labels = true,
)
fig

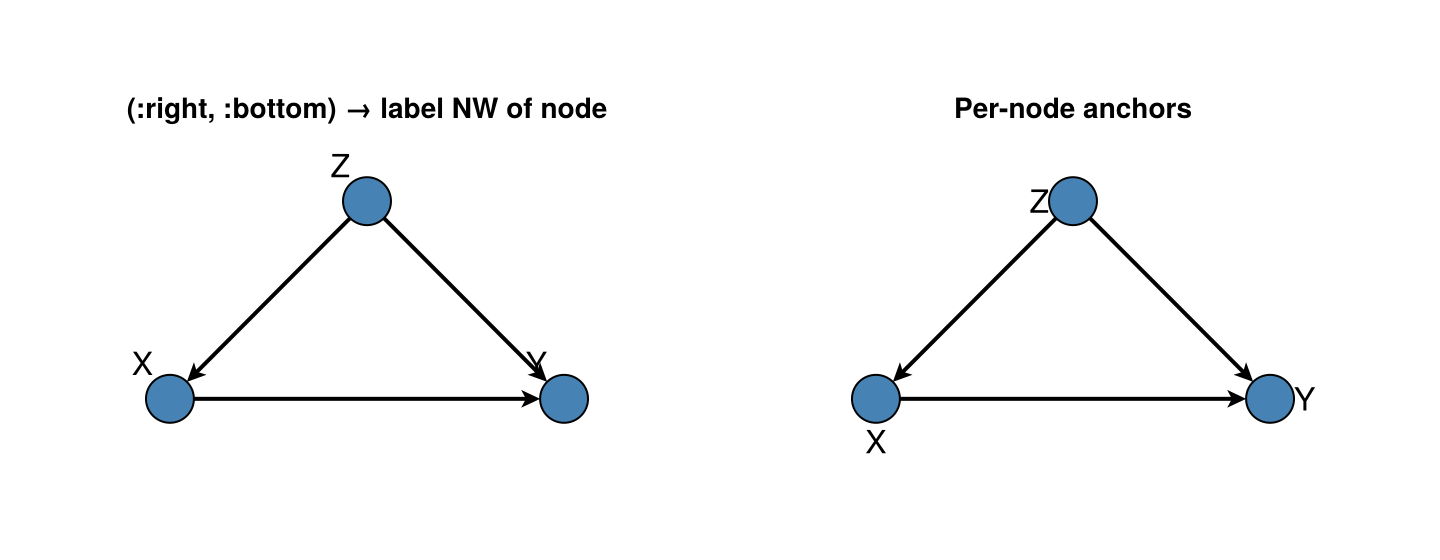

Manual anchors (typically with a positive nlabels_distance when labels sit outside the fill). Panel titles show where the label appears relative to the node:

fig = Figure(size = (720, 280))
ax1 = Axis(fig[1, 1], title = "(:right, :bottom) → label NW of node")
ax2 = Axis(fig[1, 2], title = "Per-node anchors")
dagplot!(ax1, g;
    labels = labels,
    label_position = :inner,
    nlabels_distance = 12,
    nlabels_color = :black,
    nlabels_align = (:right, :bottom),
)
dagplot!(ax2, g;
    labels = labels,
    label_position = :inner,
    nlabels_distance = 12,
    nlabels_color = :black,
    # Z right-anchored → label west; X top-anchored → label south; Y left-anchored → label east
    nlabels_align = [(:right, :center), (:center, :top), (:left, :center)],
)
fig

Layout

DAGMakie now defaults to an automatic layout strategy:

layout_mode = :auto chooses a deterministic layered layout for acyclic graphs
layout_mode = :cyclic uses an SCC-aware layout with curved feedback edges
layout_mode = :spring falls back to a force-directed layout
layout = ... still accepts explicit node positions or a NetworkLayout.jl layout object
Within-layer node_gap defaults to 2.6 for label_position=:inner and 1.8 for :outer (override with node_gap=…)
Edges are straight by default; curve forks or skip chords with :curved, CurvedEdge(), or a bow fraction (long_edge_routing = :quadratic when curved) (see Output Quality)
Per-edge overrides: edge_routing = Dict((1, 4) => :curved, (1, 5) => CurvedEdge(bow = 0.28)) (:straight, :curved, a bow fraction, or CurvedEdge(distance=…) for bend angle)
Comparison / intervention helpers reuse a shared layout result so panels do not jump

For CPDAG skeletons and occasion×variable grids, see Skeletons & Time (dagplot_skeleton, dagplot_time_indexed).

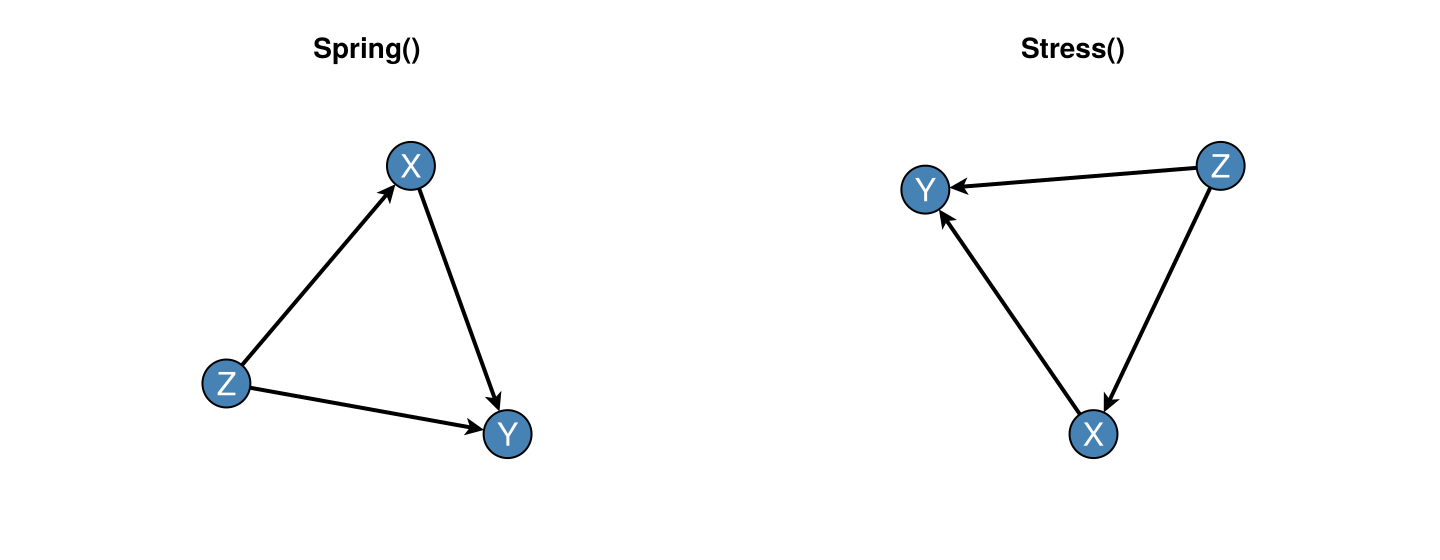

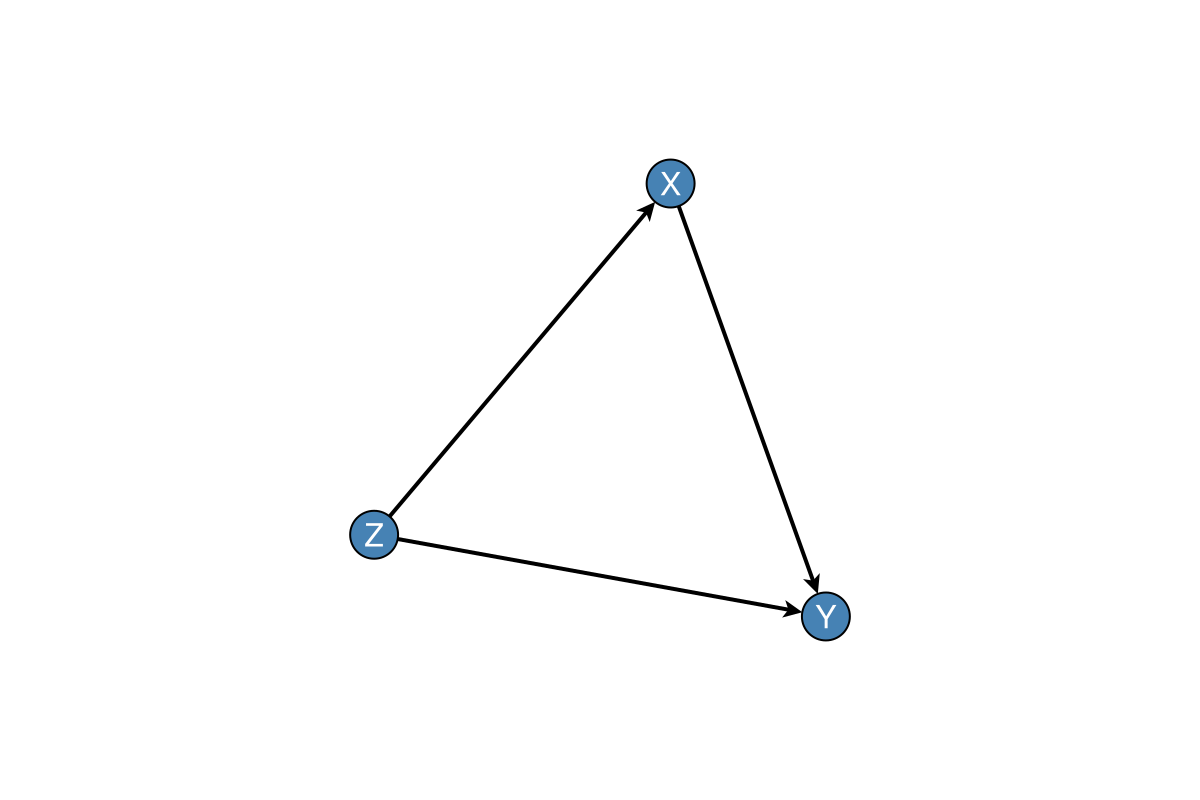

You can still use NetworkLayout.jl directly when you want a force-directed layout:

fig, ax, p = dagplot(g, labels = labels, layout_mode = :spring)
fig

using NetworkLayout

fig = Figure(size = (720, 280))
ax1 = Axis(fig[1, 1], title = "Spring()")
ax2 = Axis(fig[1, 2], title = "Stress()")
dagplot!(ax1, g; labels = labels, layout = Spring())
dagplot!(ax2, g; labels = labels, layout = Stress())
fig

Figure Size

fig, ax, p = dagplot(g,
    labels = labels,
    figure_size = (480, 320),    # Width × Height in pixels
)
fig

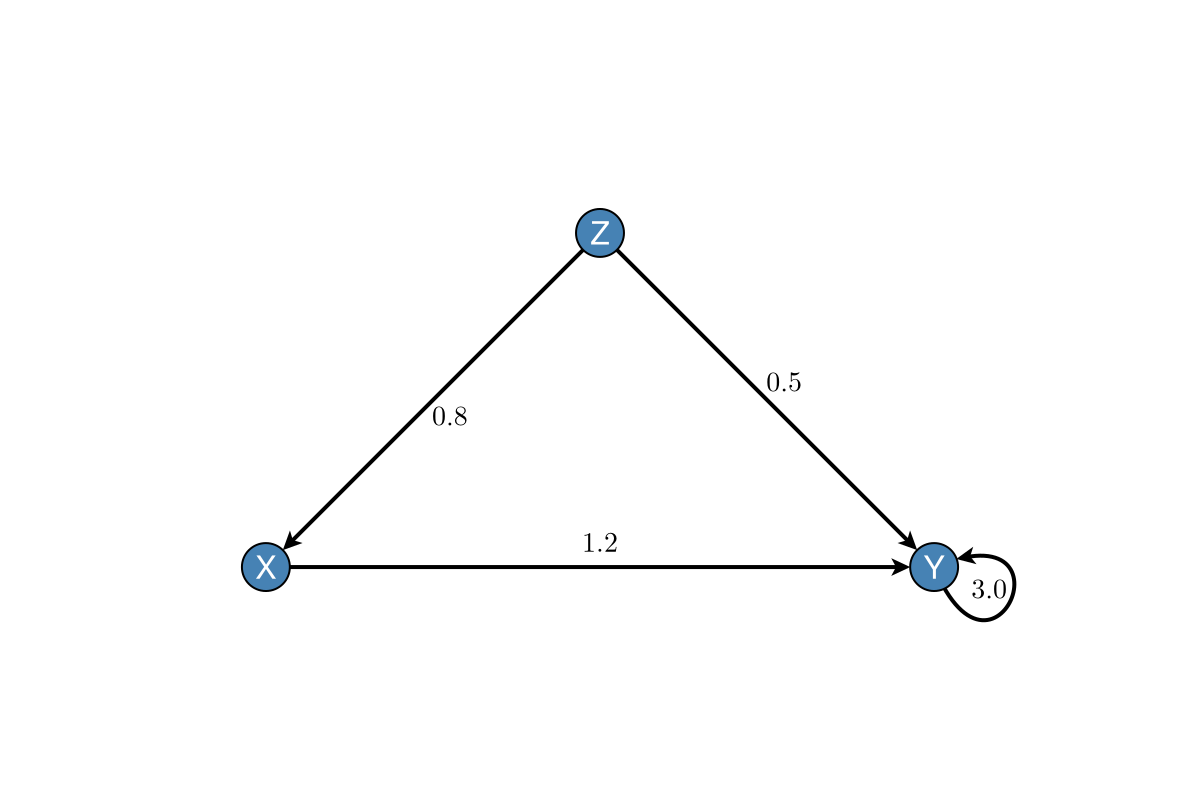

Structural edge labels (LaTeX)

GraphMakie elabels pass through dagplot / dagplot!. Use structural_edge_labels to annotate edges with linear-SCM structural weights from a matrix $B$ (with $B_{ij}$ the parameter on $j\to i$), or with short TeX fragments of a mechanism, optionally as Makie LaTeXStrings. A non-zero diagonal is treated as a self-loop: by default structural_edge_labels adds any missing i → i edges on g before labelling (layout still treats the loopless core as a DAG). Prefer a dedicated copy of the graph if later chunks must keep the original edge set:

B = [
    0.0  0.0  0.0;
    0.8  0.0  0.0;
    0.5  1.2  3.0;
]
g_loop, labels_loop = confounding_graph(["Z", "X", "Y"])
fig, ax, p = dagplot(g_loop;
    labels = labels_loop,
    elabels = structural_edge_labels(g_loop, B; digits = 1),  # adds Y → Y
    elabels_fontsize = 14,
    elabels_distance = 12,
    elabels_rotation = 0,   # keep maths upright
)
fig

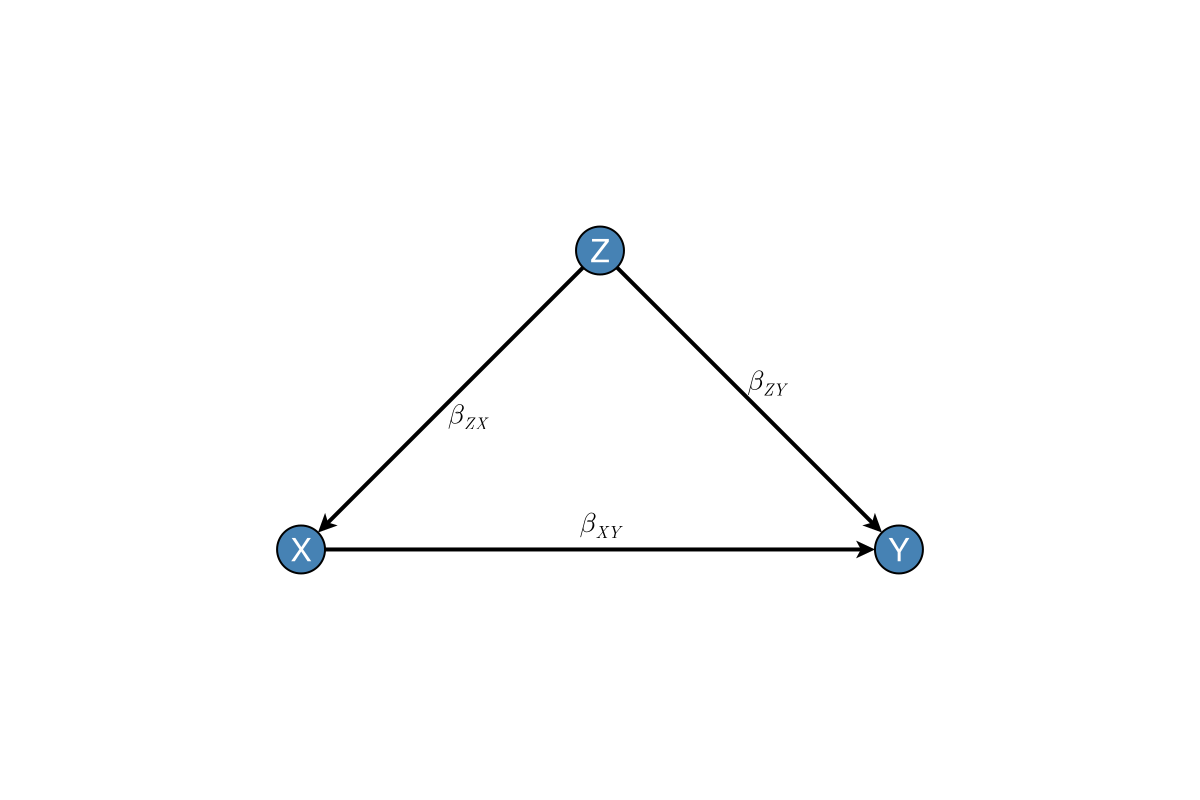

Custom TeX on edges (still one label per Graphs.edges(g) entry):

fig, ax, p = dagplot(g;
    labels = labels,
    elabels = structural_edge_labels(
        g,
        ["\\beta_{ZX}", "\\beta_{ZY}", "\\beta_{XY}"];
        latex = true,
    ),
    elabels_fontsize = 14,
    elabels_distance = 12,
    elabels_rotation = 0,
    padding = 0.45,
)
fig

Signed edge terminals

Use edge_weights when a diagram should distinguish an explicitly declared inhibitory mechanism from an ordinary directed mechanism. Negative values draw an inhibitory -| terminal; non-negative values retain the usual arrowhead. The values are display metadata: DAGMakie does not infer a mechanism sign from the graph or from an edge label.

Pass either one value per Graphs.edges(g) entry or the structural matrix $B$ used by structural_edge_labels:

B_signed = [
    0.0   0.0  0.0;
    0.8   0.0  0.0;
    0.5  -1.2  0.0;
]
fig, ax, p = dagplot(g;
    labels = labels,
    edge_weights = B_signed,
    elabels = structural_edge_labels(g, B_signed; digits = 1),
    elabels_rotation = 0,
    padding = 0.45,
)
fig

Padding

Control spacing around the graph:

fig, ax, p = dagplot(g,
    labels = labels,
    padding = 0.15,              # 15% padding (fraction of range)
)
fig
